The world's first ESD multimeter

from KEINATH
EPA SafeAssure The game changer

In a world where everything is becoming increasingly digital and smart, we have repeatedly found that ESD measurement technology is lagging behind, even though state-of-the-art, technologically sophisticated products are manufactured in production facilities where ESD protection is crucial.

Our goal was clear: ESD measurement technology must become smart! Because where technologically leading products are created, the equipment should also be state-of-the-art.

With EPA SafeAssure, the world's first ESD multimeter, we are bringing ESD measurement technology into the digital age - precise, networked and future-oriented.



Maximum precision, minimum effort From now on you measure smart!

With EPA SafeAssure, we have created a revolutionary solution. A single device for all ESD measurements that replaces all previous measuring devices. No more complicated setups, no more different devices for different measurement tasks - simply switch on, measure and get reliable results.

We have developed a design that is not only practical, but also elegant, high-quality and ergonomic. Lightweight, robust and perfectly balanced, it sits comfortably in the hand for precise, effortless measurements.

KEINATH - the inventors of the ESD-Multimeter®



Measure smartly, efficiently and future-proof from now on

Discover now
Intelligent, flexible and future-proof The next generation of ESD measurement technology

EPA SafeAssure, we are ushering in a new era of ESD measurement. Our innovative system consists of a basic device that can be flexibly adapted to different applications.

Instead of a classic division into measuring device categories, we have opted for a simple, application-oriented structure based on measuring methods.



Professional use in the laboratory and EPA ESD multimeter

The all-in-one solution:

With EPA SafeAssure the ESD multimeter you get the complete solution for all ESD measurements, combined with an intuitive user interface that makes precise measurements faster and easier than ever before. Perfect for professional use in the laboratory and the EPA.

  • Professional application for ESD managers
  • Intuitive operation - easy to understand for everyone
  • Fast and precise measurements

Thanks to integrated asset tracking, measurements can be assigned directly to a specific object. The device automatically compares the values with the standard specifications, provides a clear statement on conformity and documents all measurements in full.

The result: an all-round safe and comprehensible ESD measurement concept - well thought-out, practical and efficient!

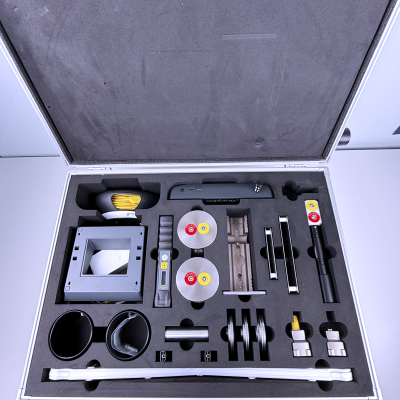

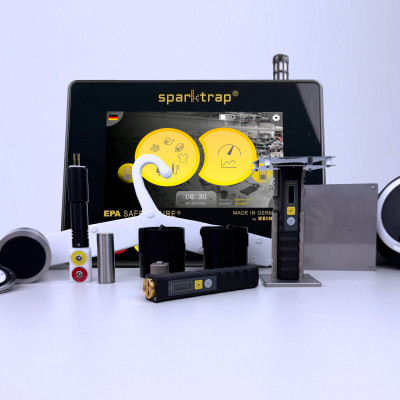

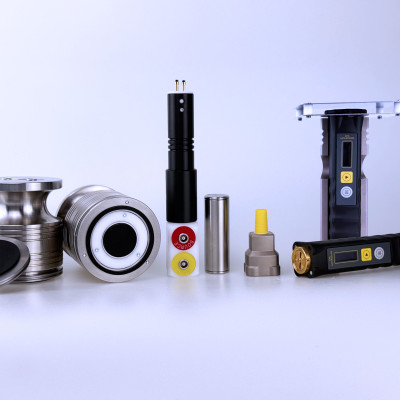

The all-in-one solution includes:

  • Basic device with integrated ohmmeter
  • Our unique field mill&amp
  • 2.50 kg Electrode pair according to IEC DIN EN 61340-5-1, -4-1, -2-3, -4-5
  • Ring electrode
  • Two-point electrode & hand electrode
  • Charge Plate Monitor Set
  • Teflon clothes hanger & two sleeve electrodes
  • Cable reel
  • Test leads and accessories
  • Crocodile clips

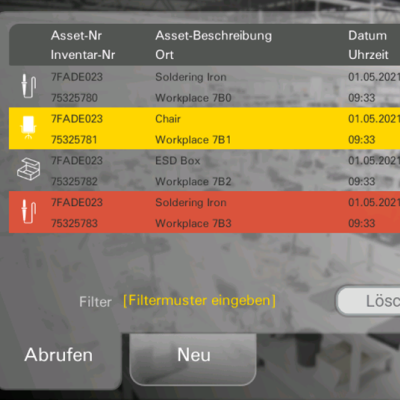

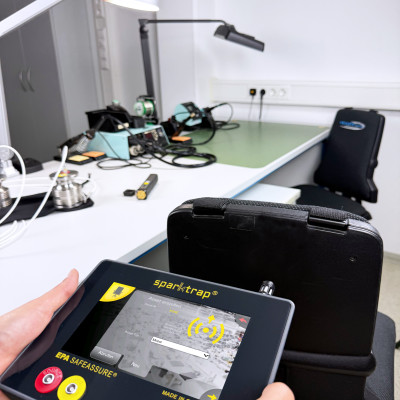

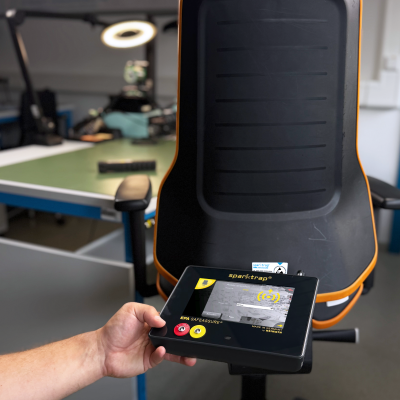

Highlight Asset Tracking Tool

Efficient recording and documentation of your ESD measurements

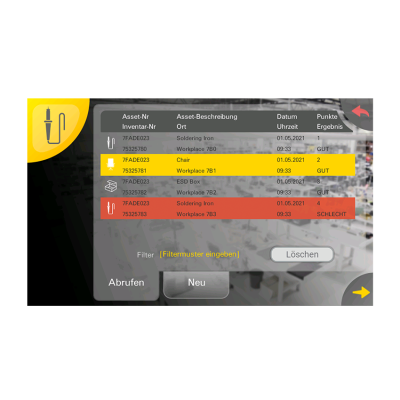

The integrated asset tracking tool makes it easy to record and manage the EPA operating equipment using RFID tags. This smart tool ensures clear allocation and complete documentation of the measuring points and measured values - ideal for creating an audit-capable ESD control program plan.

Long-term traceability

Asset tracking describes the digital identification of measurement objects:

  • Electronic identification using RFID tags
  • Automatic recording in the database of the basic device
  • Sustainable documentation for recurring measurements

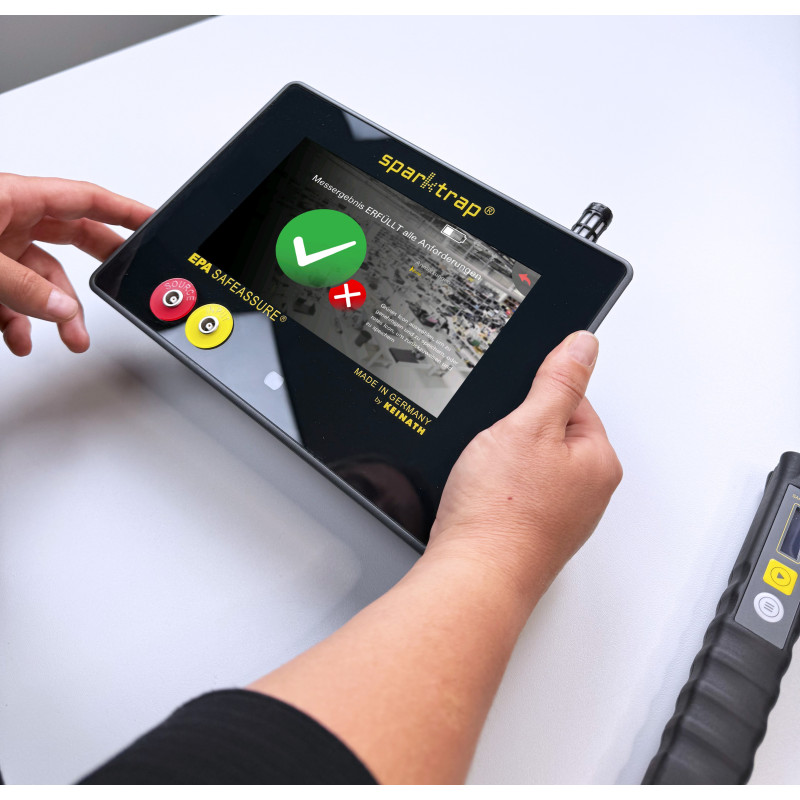

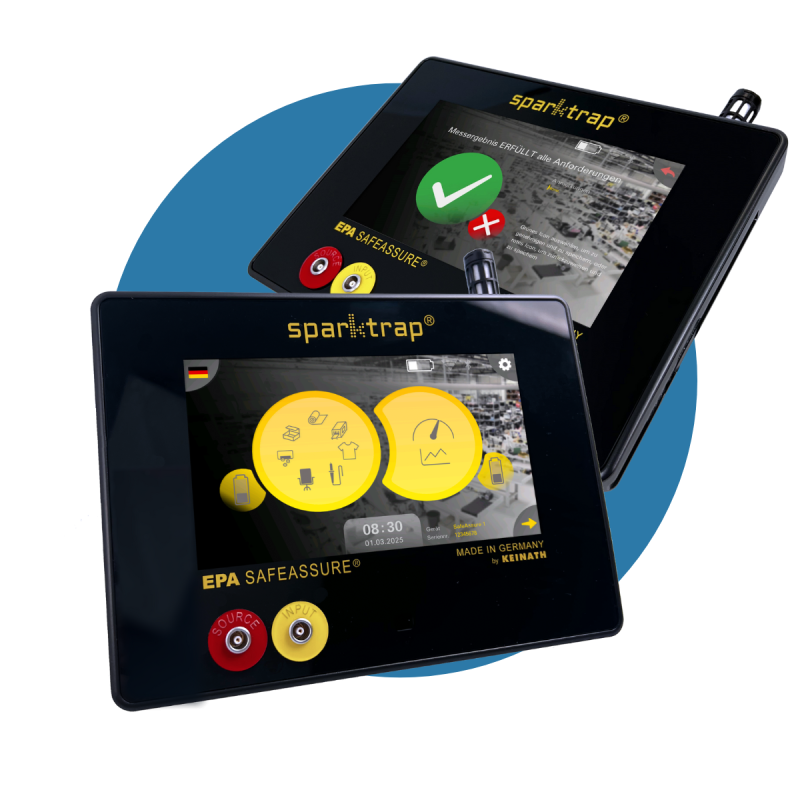

Highlight Standard-compliant ESD measurement at the touch of a button

EPA SafeAssure enables fast and precise assessment of the standard compliance of operating equipment, materials and processes in electronics production. Thanks to the integrated evaluation models, you receive a clear statement on compliance with the standard directly at the measuring point - without time-consuming post-processing or manual evaluation of measurement curves.

Intelligent measurement data evaluation for maximum safety

Different evaluation models are used depending on the respective standard and measurement task. While simple limit value tests are sufficient in some cases, more complex analyses - such as the walk-through test - require more extensive calculations. Here, EPA SafeAssure automatically takes the standard-compliant evaluation into account.

This intelligent management ensures that measured values can be recorded, compared and monitored over a longer period of time with minimal effort. In this way, the standard compliance of the operating equipment remains traceable and documented in an audit-proof manner at all times.



Precision and conformity guaranteed Measurements according to international standards

EPA SafeAssure supports you in complying with and documenting ESD protection measures in accordance with current standards.

  • Teraohmmeter according to DIN EN 61340-2-3

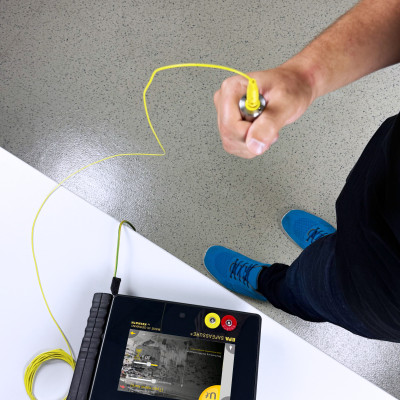

  • Walk-through test according to DIN EN IEC 61340-4-5
  • Charged plate monitor in accordance with DIN EN 61340-4-7
  • Measurement of floor coverings according to DIN EN 61340-4-1

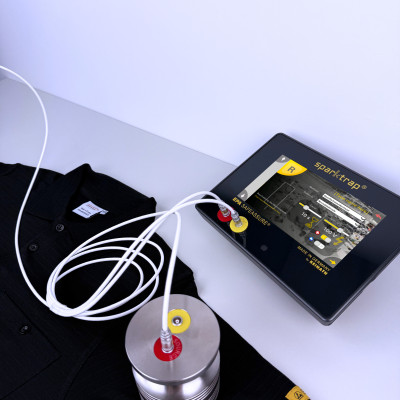

  • Measurement of clothing according to DIN EN 61340-4-9

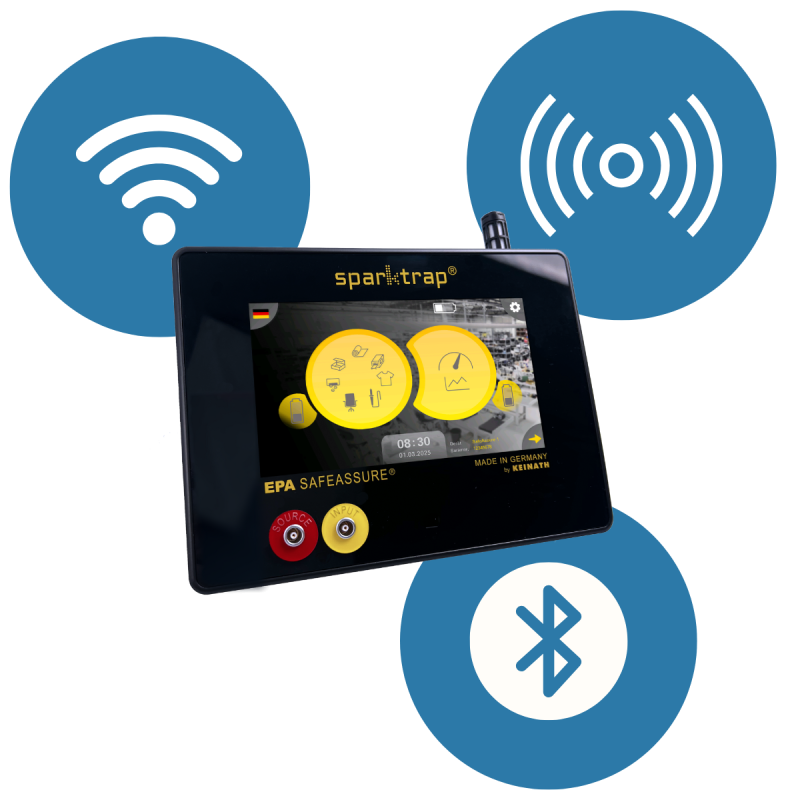

Highlight Networked & future-proof

Our devices are equipped with Bluetooth, RFID and WLAN interfaces to enable wireless, smart and efficient ESD measurement. Whether wireless sensor connection, automated identification via RFID or network integration via WLAN - with EPA SafeAssure you are ideally equipped for the digital future.

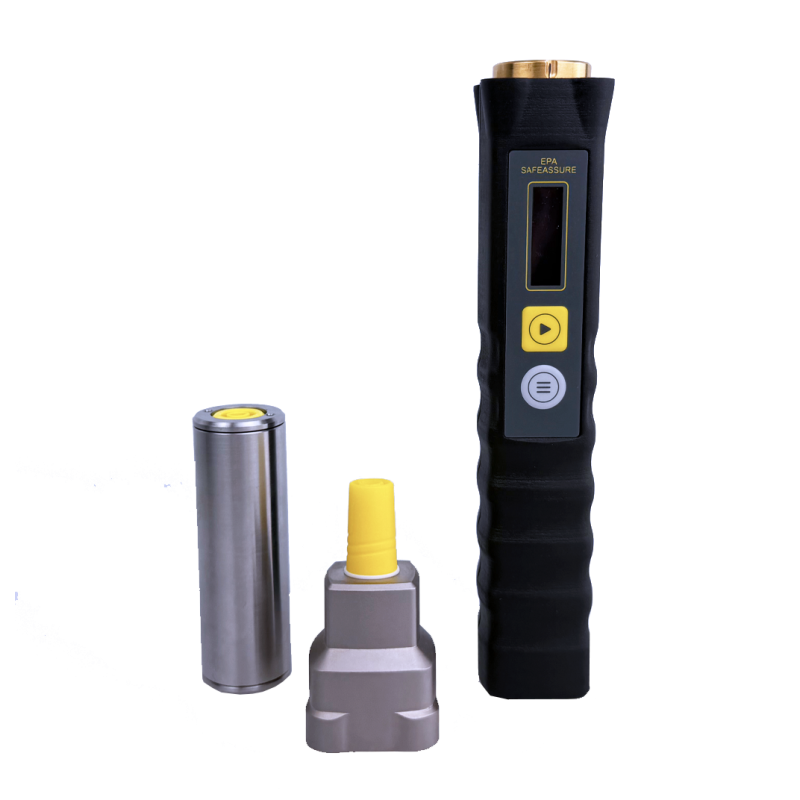

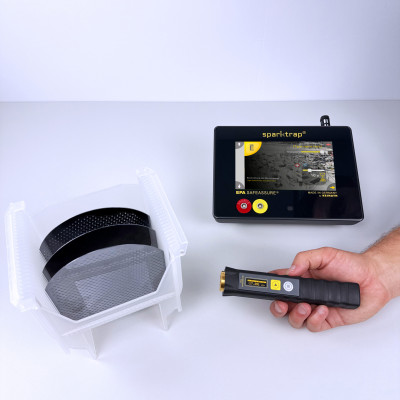

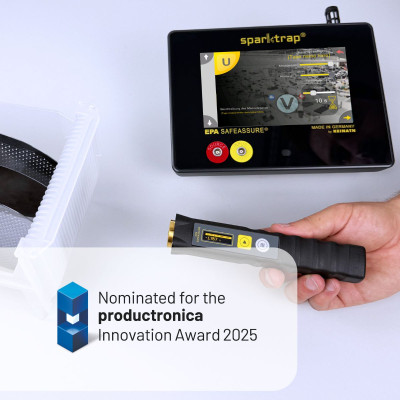

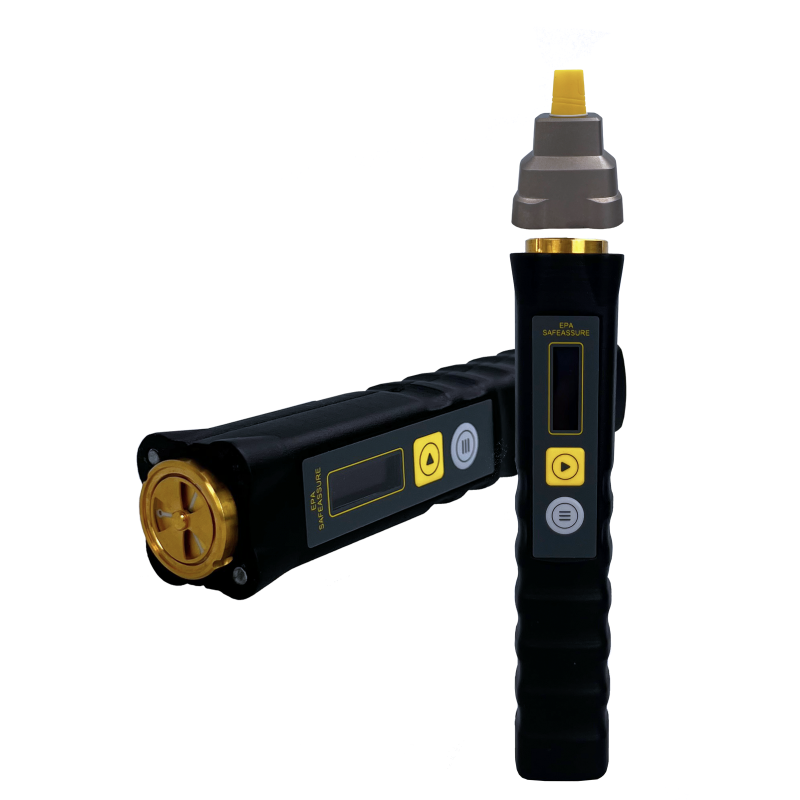

Highlight The smart field mill

What does a fully sophisticated ESD multimeter need? A smart field mill, of course! Our new field mill combines state-of-the-art technology with an ergonomic and lightweight design - for maximum comfort and precision.

  • Integrated distance sensor, automatic calculation of the voltage from the measured field strength
  • Wireless &amp
  • Ergonomic design, light and comfortable to use

This innovative field mill makes measuring field strengths easier than ever before. Maximum flexibility, minimum complexity - for smart ESD measurement!

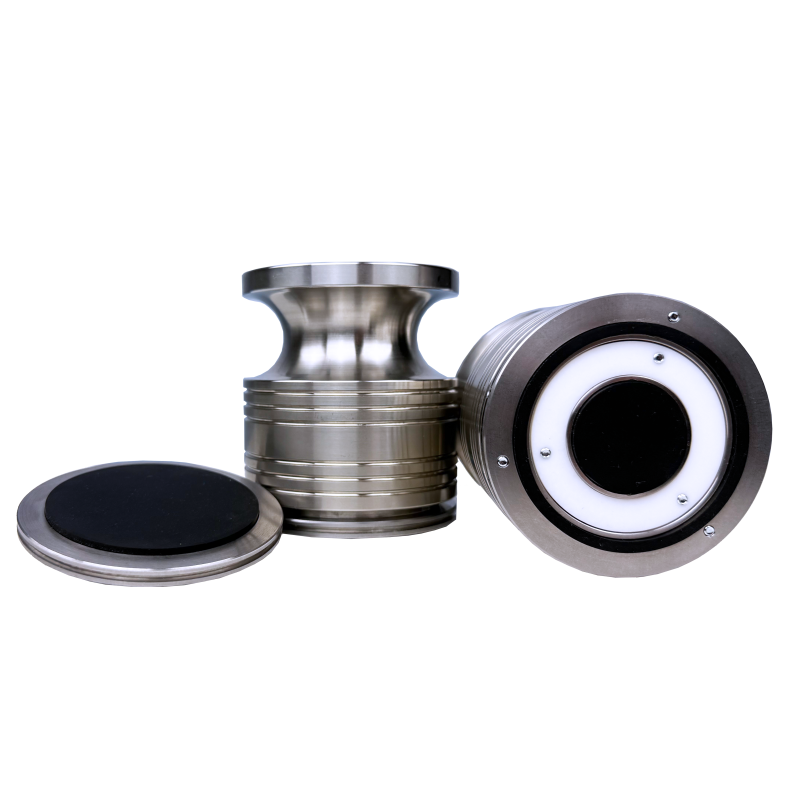

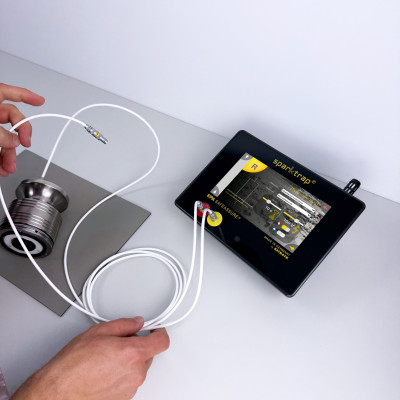

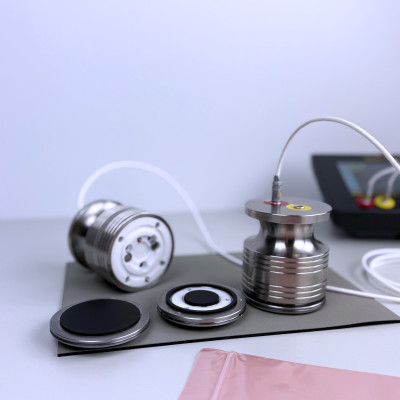

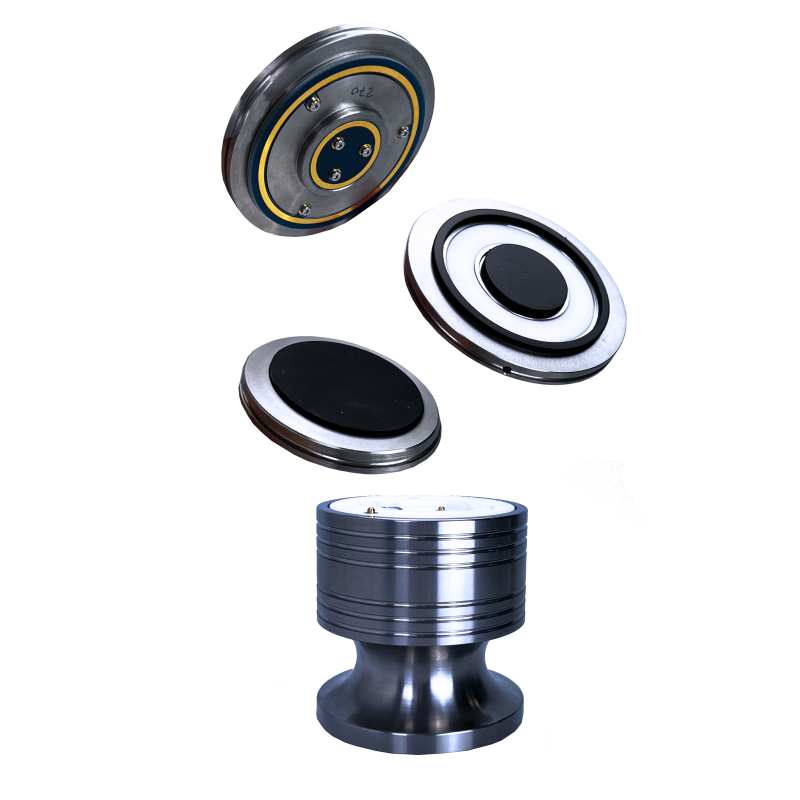

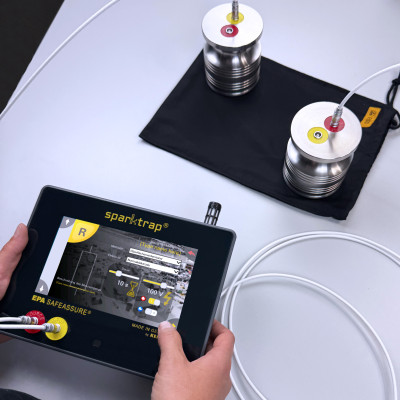

Highlight Modular electrode pair

We have also fundamentally revised the classic measuring electrodes from older devices to create a more practical and flexible solution for the user.

The result: two interchangeable electrode plates in one system!

  • Standard electrode for standard measurements
  • Ring electrode for special applications

Thanks to the magnetic attachment, the electrode plates can be replaced in no time at all. This makes handling much easier and more convenient.

EPA SafeAssure Well thought out down to the last detail

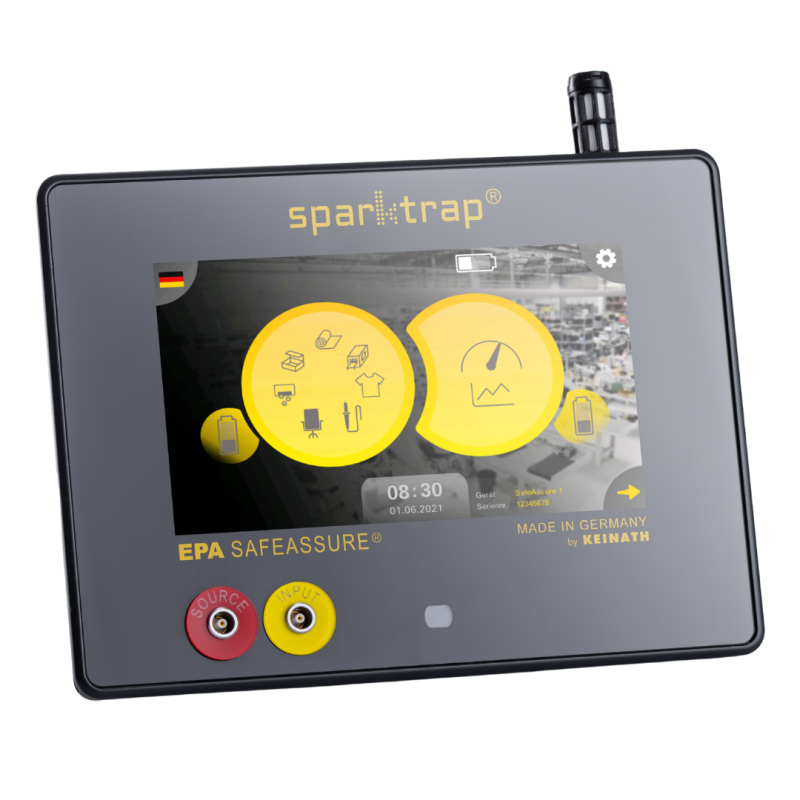

The world's first ESD multimeter from KEINATH - sparktrap® EPA SafeAssure® - not only impresses with its innovative technology, but also with its well thought-out design. At the center of the device is the precise high-ohmmeter, which serves as the heart of all resistance measurements.

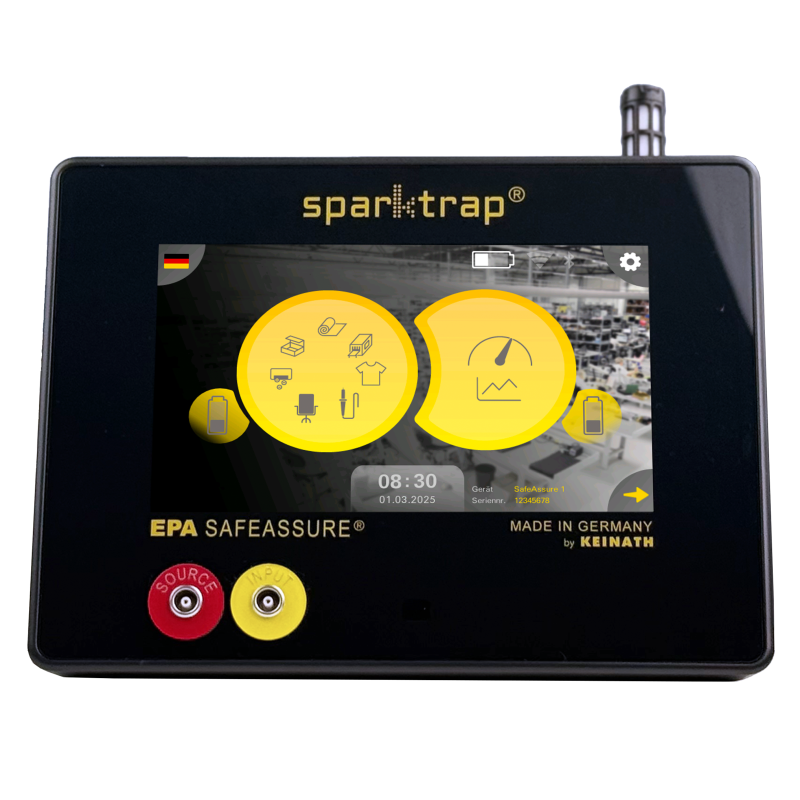

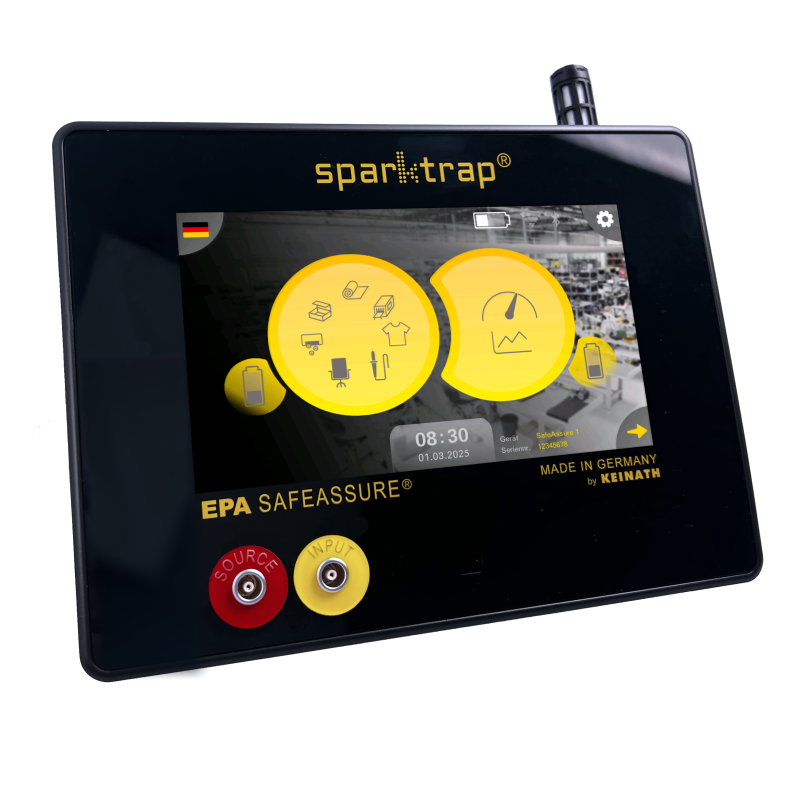

The high-resistance meter is at the heart of EPA SafeAssure The measuring unit

The measuring unit itself forms the basis of the system - robust, compact and tailored to industrial requirements. From basic equipment to professional discharge measurement. All measurements are carried out exclusively in battery mode to ensure maximum flexibility and independence in use.

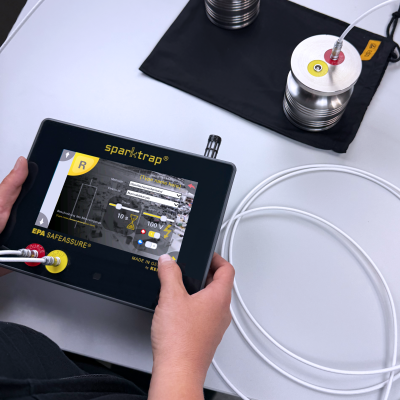

For standard-compliant measurements, the device is equipped with a high-quality modular pair of electrodes and the following perfectly matched measuring components:

  • Ring electrode

  • Standard electrode

  • Two-point electrode

This equipment allows not only maximum precision, but also maximum flexibility when testing a wide variety of materials, surfaces and operating equipment within the EPA.

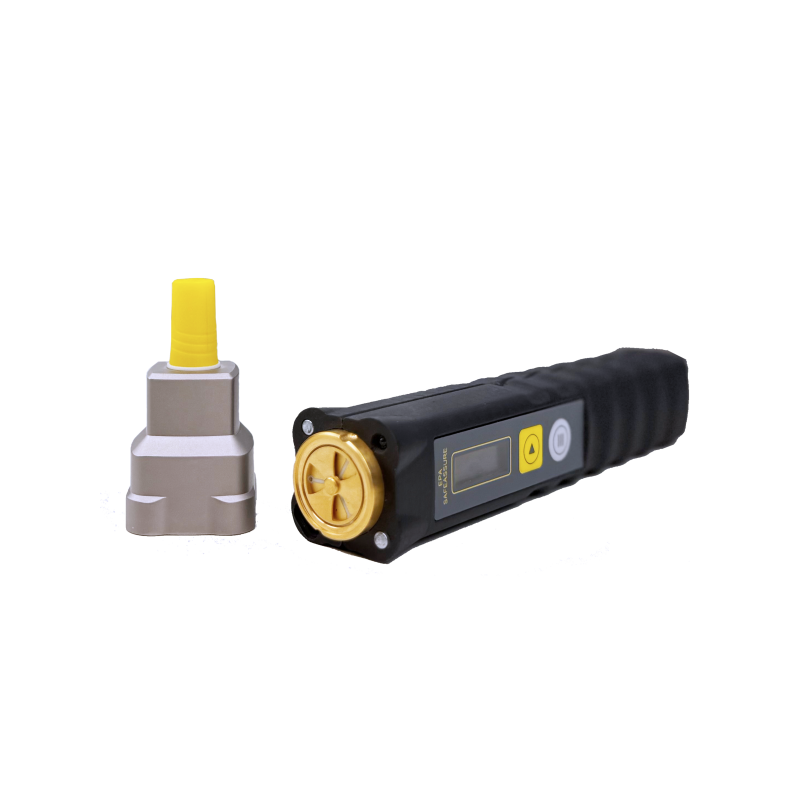

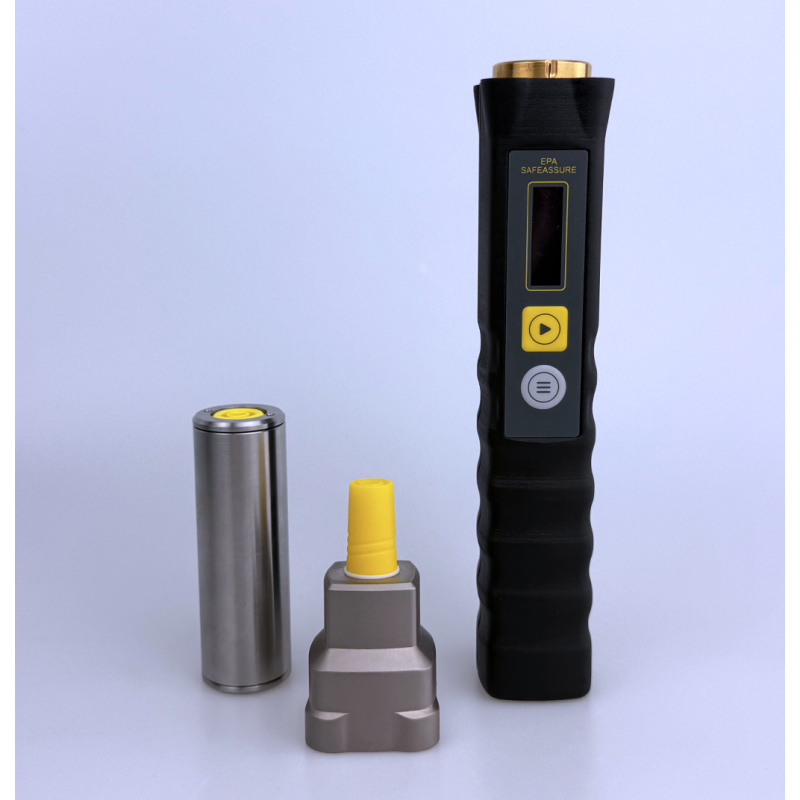

The measuring kit for charge measurements Field kit

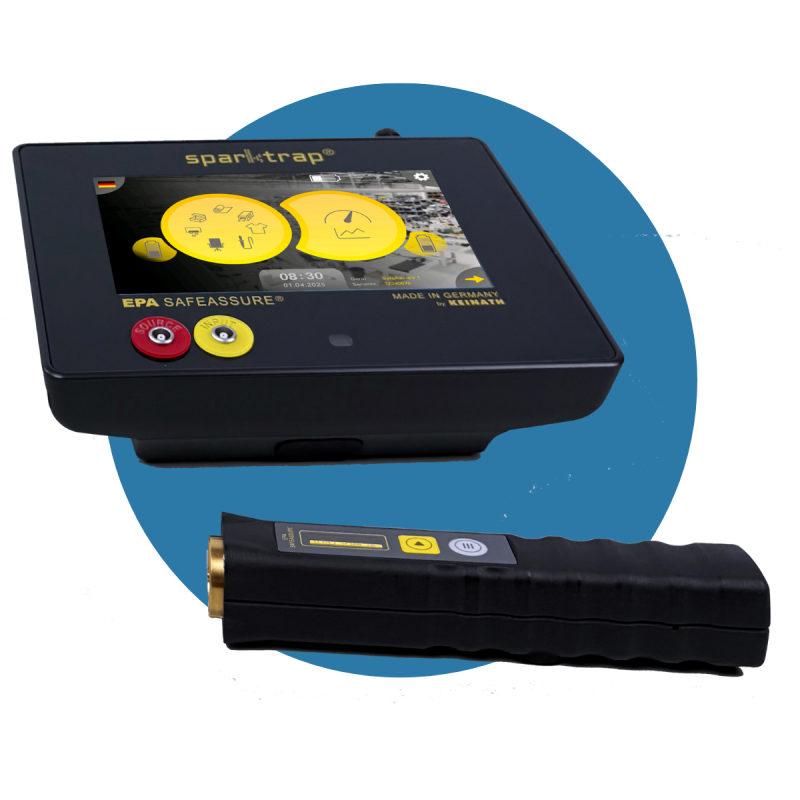

The field kit is for precise and contactless charging measurements. It includes our unique field mill, which adheres to the side of the basic device thanks to integrated magnets, for convenient handling and maximum ease of use. The field mill connects wirelessly to the device via Bluetooth

The E-Field kit includes:

  • Field mill
  • Measuring head
  • Hand electrode
  • Measuring cable and accessories

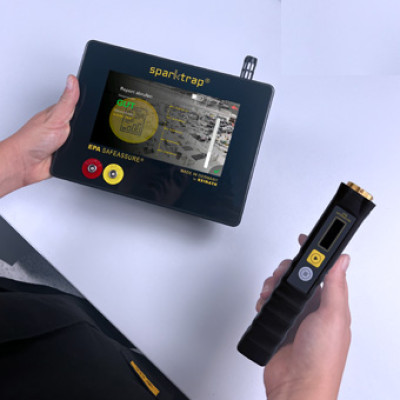

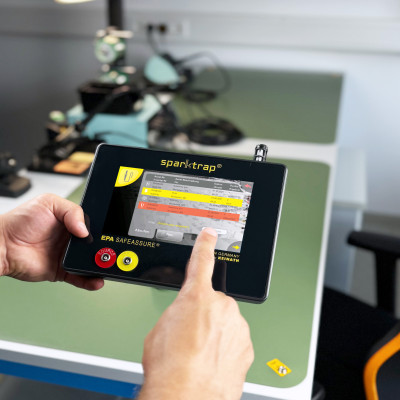

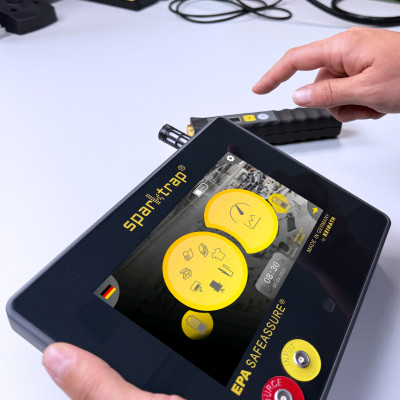

ESD measurement easier than ever The user interface With EPA SafeAssure, we have once again focused on a simple and intuitive user interface. The self-explanatory user guidance is supported by clear and understandable pictograms that ensure effortless handling. Thanks to this user-friendly design, measurements can be carried out quickly and accurately. Our interfaces are designed in such a way that they are understandable for all users with previous knowledge.

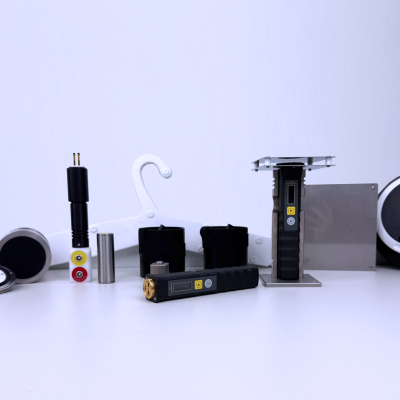

Quality down to the smallest detail Accessories that impress

With EPA SafeAssure, we also focus on quality from start to finish, not only with our measuring device and technological accessories such as our field mill, but also with every detail of the accessories. Our measuring cables, the cable reel and all other components have not only been thought through functionally, but also perfectly matched to the device in terms of appearance.

Durability and design in perfect harmony
Our accessories are more than just a supplement, they are a deliberately designed quality product that meets the highest standards. We offer a solution that is not only reliable and robust, but also visually appealing and fits seamlessly into the overall appearance of our measuring system.

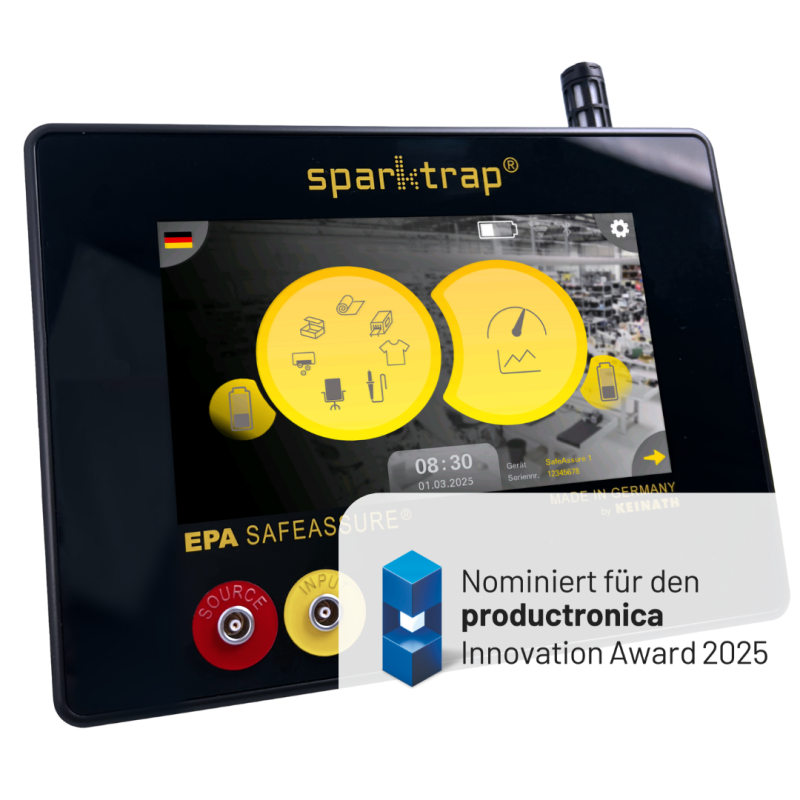

A revolution in ESD measurement The design

A perfect fusion of modern design, ergonomic excellence and sophisticated technology. EPA SafeAssure perfectly complements our sparktrap EPA assessment tools and embodies timeless aesthetics and innovation. Every detail has been designed with ease of use in mind. The ergonomic shape and intuitive layout of the controls ensure effortless and comfortable handling - perfect for everyday use.

  • Made in Germany
  • Highest quality and sustainability
  • Use of high-quality materials
  • Robust and durable
  • Glass front & touch display
  •  Connections made of solid stainless steel
  • Strongly adhesive magnets
